Fanless industrial Network Security Appliance

Contact 1ST-embedded

The fanless industrial PC 1ST-FFW-BT6LV with Intel® Celeron® J1900 quad core processor and 6x Intel® Gigabit Ethernet controllers is suitable for a variety of applications as network security computer such as Firewall, VPN gateway, UTM appliance, industrial Router, IDS / IPS system, network monitoring system etc.

The system optionally has one or two BYPASS groups that can be flexibly configured. This embedded Box PC is a low power system with a power consumption below 20W and is long-term available.

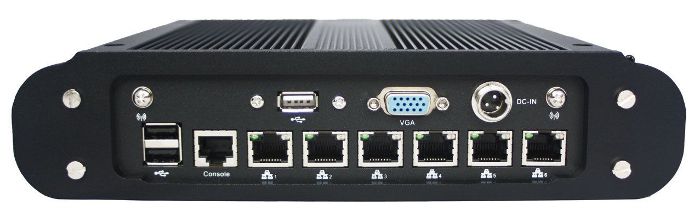

In addition to the LAN ports, there are 3 USB 2.0 ports, an RS-232 console port, and a VGA interface. Up to 8 GB of DDR3L SO-DIMM and a SATA interface for 2.5" SSDs as well as a CF-card socket provide sufficient storage capacity, while a mini-PCIe slot allows optional upgrades to eg WiFi or 4G .

The system is powered by 12V DC and runs under Linux, FreeBSD and Windows.

The compact aluminum housing and the efficient cooling solution via a heat pipe allow easy use in operating temperatures from 0 °C to 50 °C. On request, you can get an extended temperature range from -20 to + 60 ° C. Extensive industrial BIOS features allow for detailed configuration according to your requirements and we are happy to supply the devices with pre-qualified DRAMs, SSDs and CF-cards according to your requirements as well as preinstalled .Software such as pfSense under FreeBSD or Linux-based Firewall Software. The device is equipped with mounting brackets for desktop or wall-mounting.
