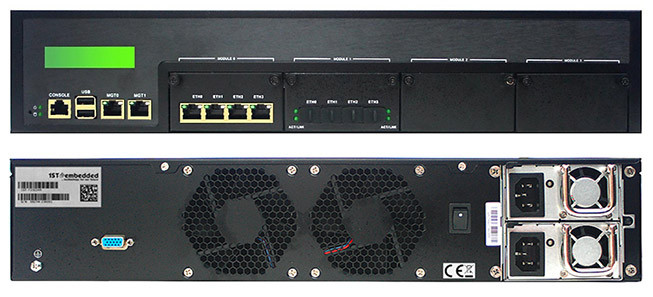

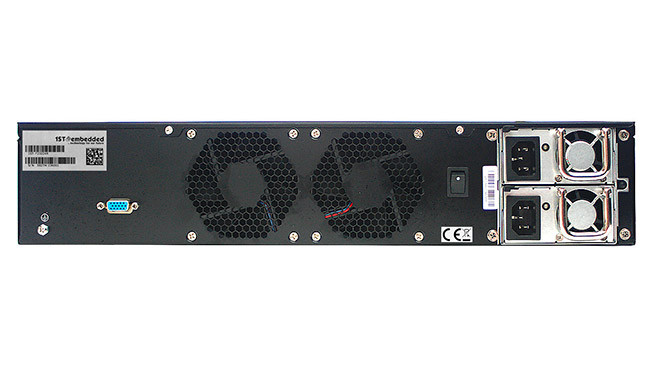

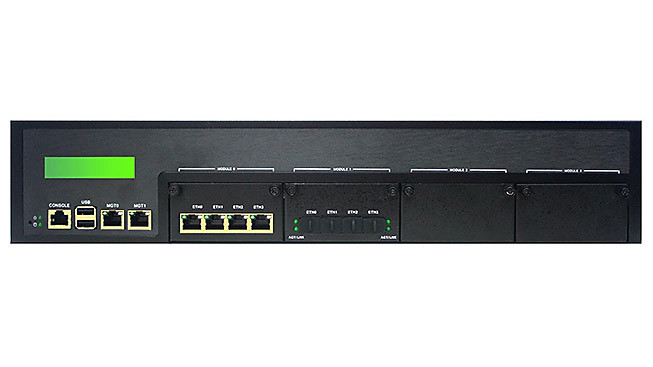

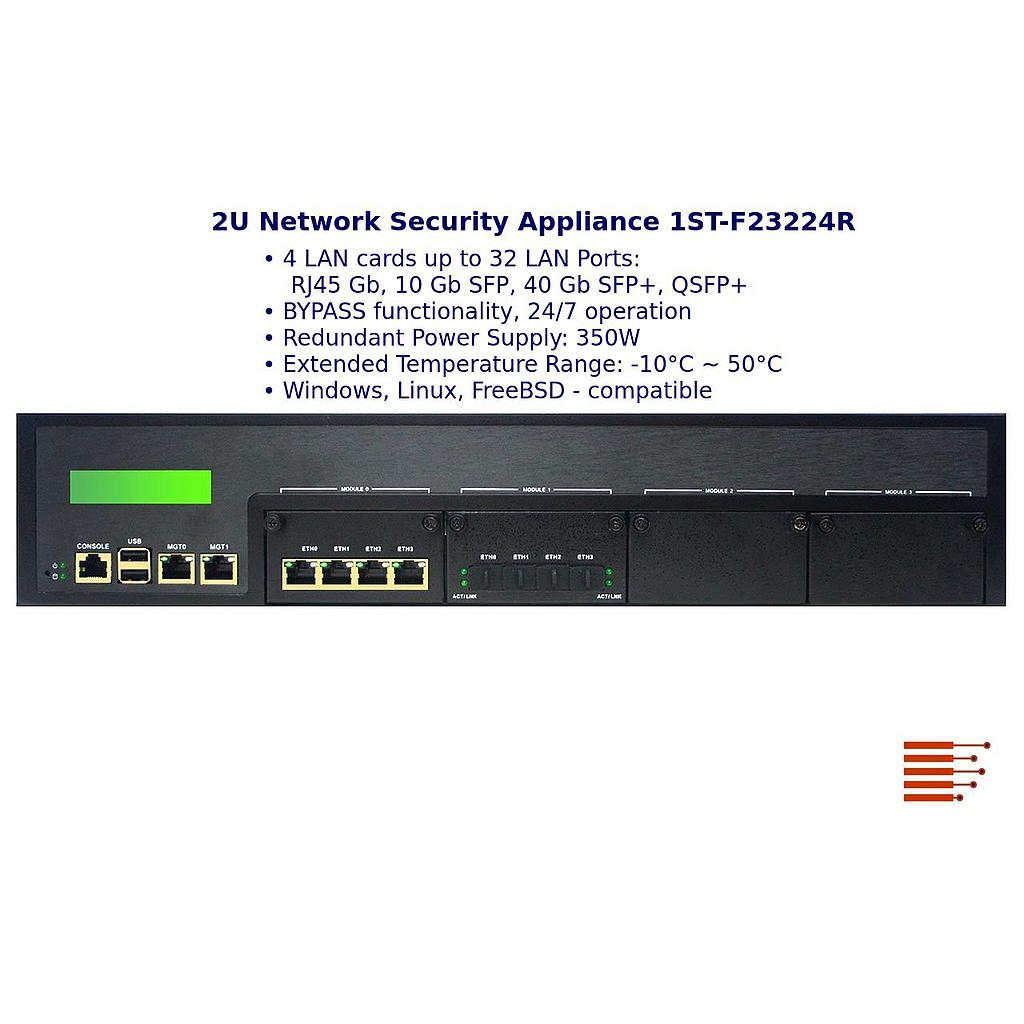

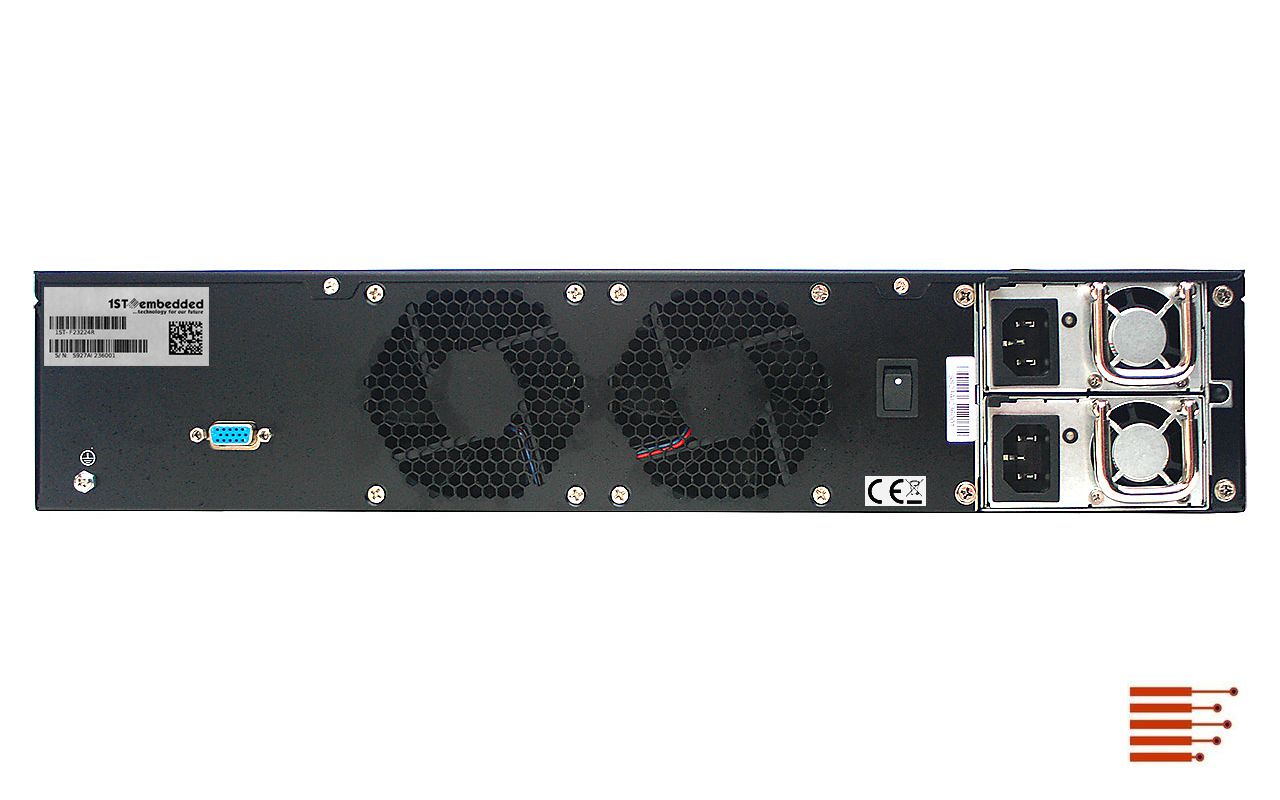

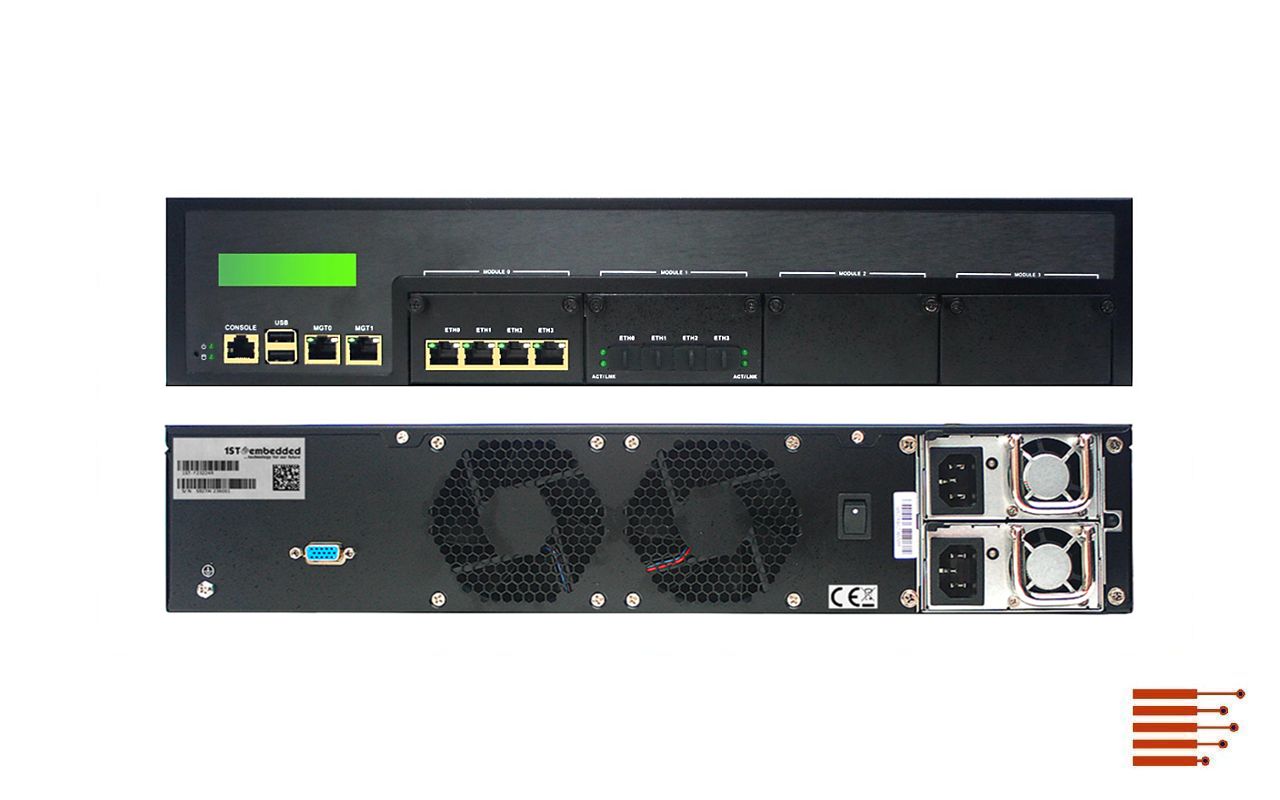

2U Netzwerksicherheits-Appliance 1ST-F23224R

Get Quote

Diese Kombination existiert nicht.


2U Netzwerksicherheits-Appliance mit Intel® Xeon® E3v5 / E3v6 CPU oder Intel® Core™ i3/i5/i7 Prozessor und bis zu 4x LAN Erweiterungs-Module für max. 32 LAN-Ports insgesamt, 4x SATA3.0, USB3.0, mSATA, 4x DDR4 DIMM-Slots für bis zu 64 GB RAM, RJ-45-COM-Port, redundantes 350W Netzteil. Linux, FreeBSD.


Power Supply: redundant



Lieferung in 2-3 Tagen bei Verfügbarkeit


Items

Descriptions

Chassis

Color

Color Black or OEM

Dimensions (WxDxH)

550x440x88mm

Front Panel

Silver PVC/Aluminum Front panel (OEM/Neutral)

Motherboard

CPU

Supports Intel® Xeon® E3-1200 family or Intel® Core™ i3/i5/i7 processors

Chipset

Intel® C236

System Memory

Four dual-channels 2133/2400 MHz DDR4 DIMM slots, up to 64GB

Storage

Interface

Four SATA3.0 connectors support RAID 0, 1, 5, 10

Hard Disk

Supports four 3.5" or 2.5" HDD trays

SSD

One mSATA slot

Ethernet

LAN Port

Two 10/100/1000Mbps RJ-45 Management LAN ports

Ethernet Chip

Two Intel® PCIe controllers

Indicator

Indicator LED for LAN link, active, speed

System I/O

USB

Two USB3.0 + internal four USB2.0 and two USB3.0

COM

One RJ-45 COM

Expansion

Four PCIe x8 slots, supports four LAN cards
One PCIe x4 built-in

LCD module

Optional 2x16 characters LCD display module

Video

Built-in one VGA interface, support hot plug (Internal)

Indicator

One Power LED, one HDD LED

Watchdog Timer

Software programmable supports 1~255sec System reset

Power Supply

Power Consumption

Built-in 300W redundant power supply

Power Input

100 ~ 240VAC

Environments

Mounting

Rack-mounting or desktop-mounting

Operating temperature

-10°C ~ 50°C
