5G Industrial Cellular Router R5020

Get Quote

This combination does not exist.

The Robustel R5020 5G Industrial Router for global 5G/4G cellular connections supports Gb Ethernet, WiFi and 4G/5G internet with auto-failover, is compatible with 3GPP Release 15 and E-Mark certified for In-Vehicle applications in the version with ACC Ignition Control, support GNSS positioning, Broadband-Failover, IPSEC, DMVPN and Open VPN, fully programmable RobustOS with well documented SDK, free Cloud Management Plattform RCMS, robust and conpact aluminum housing for DIN-Rail or Wall mounting.
Country of Origin: CN, HS-code: 85176200

 Lead time 2-3 days when available

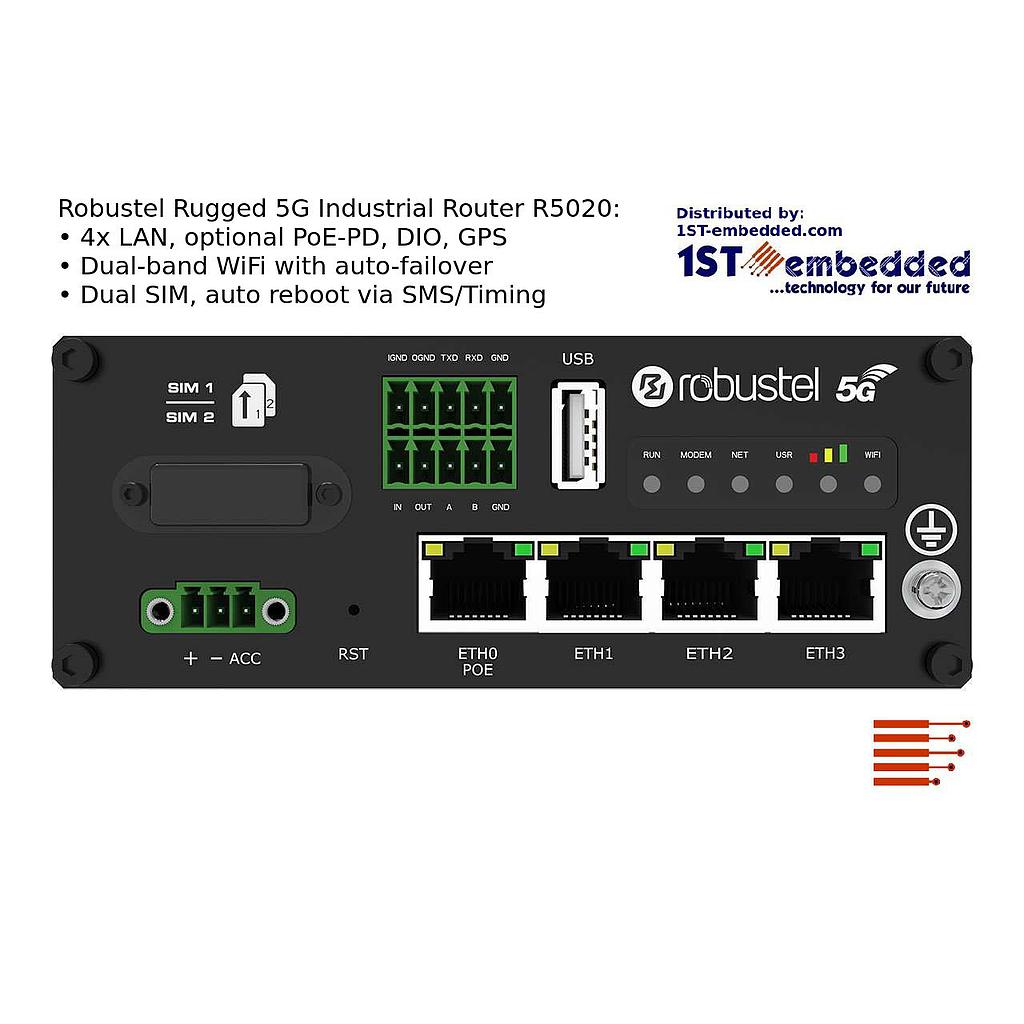

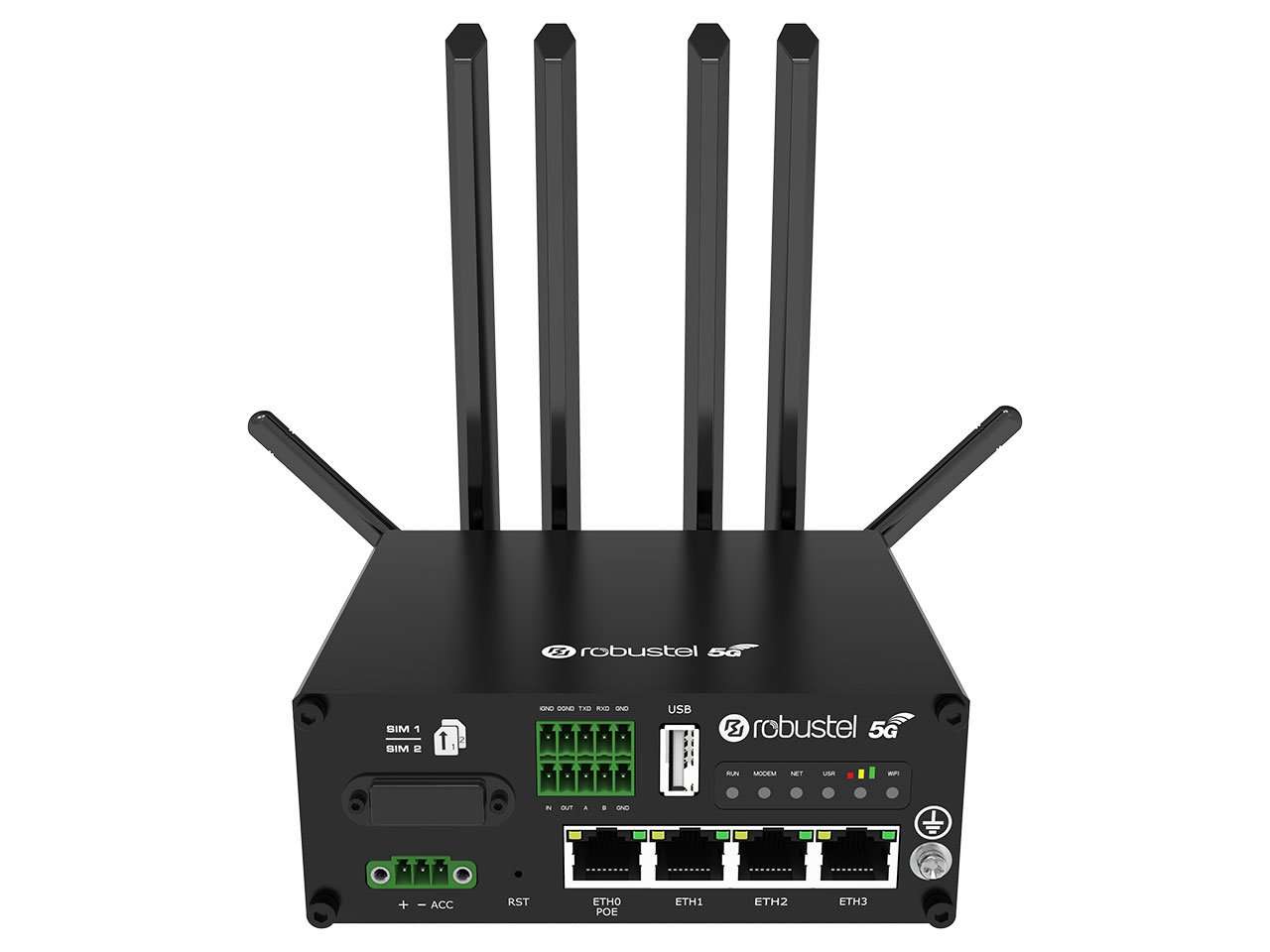

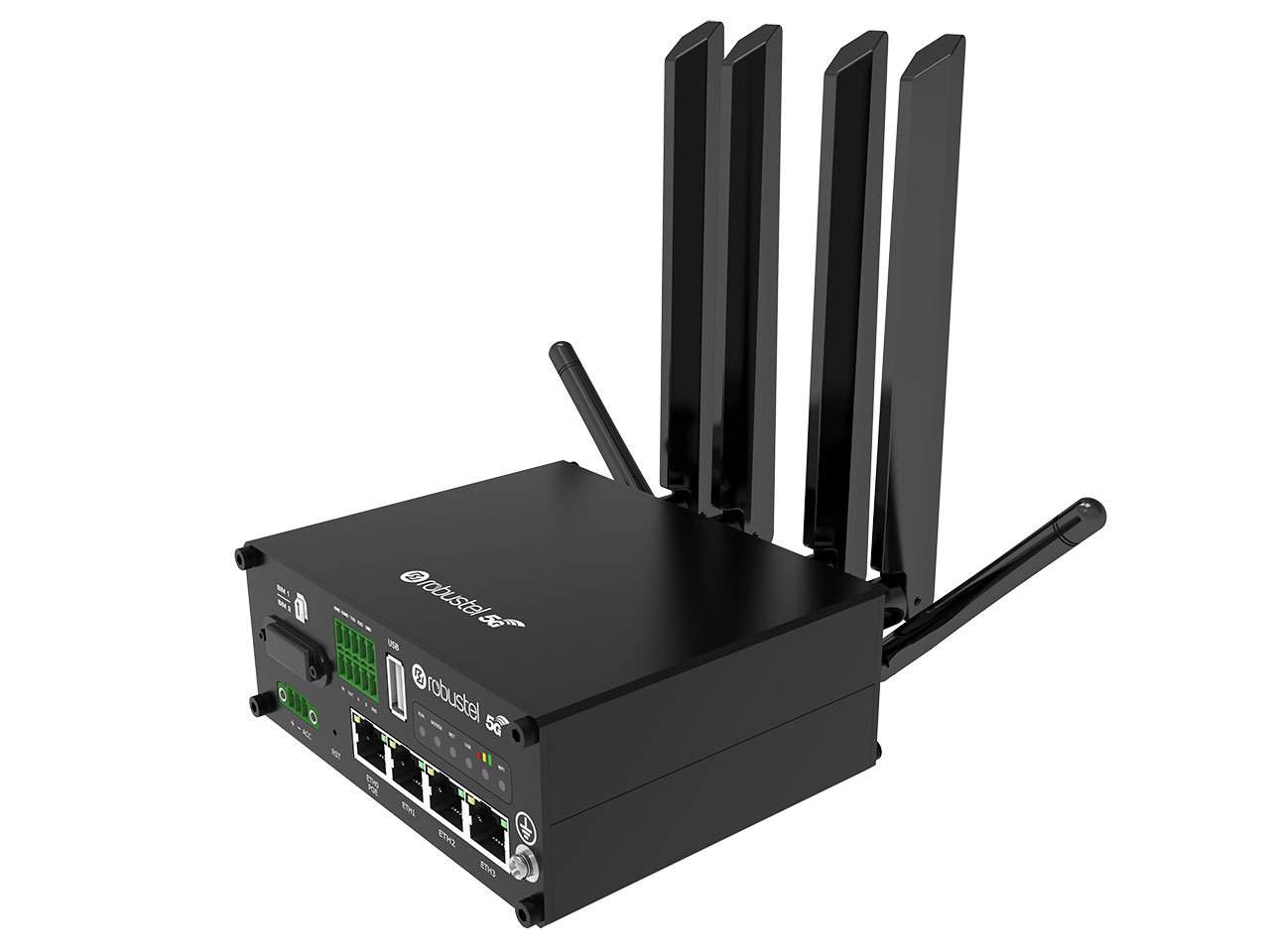

Robustel 5G Industrial Cellular Router R5020

global 5G/4G, 4x LAN, Dual-SIM, 6x Antennas, optically isolated digital I/O, rugged

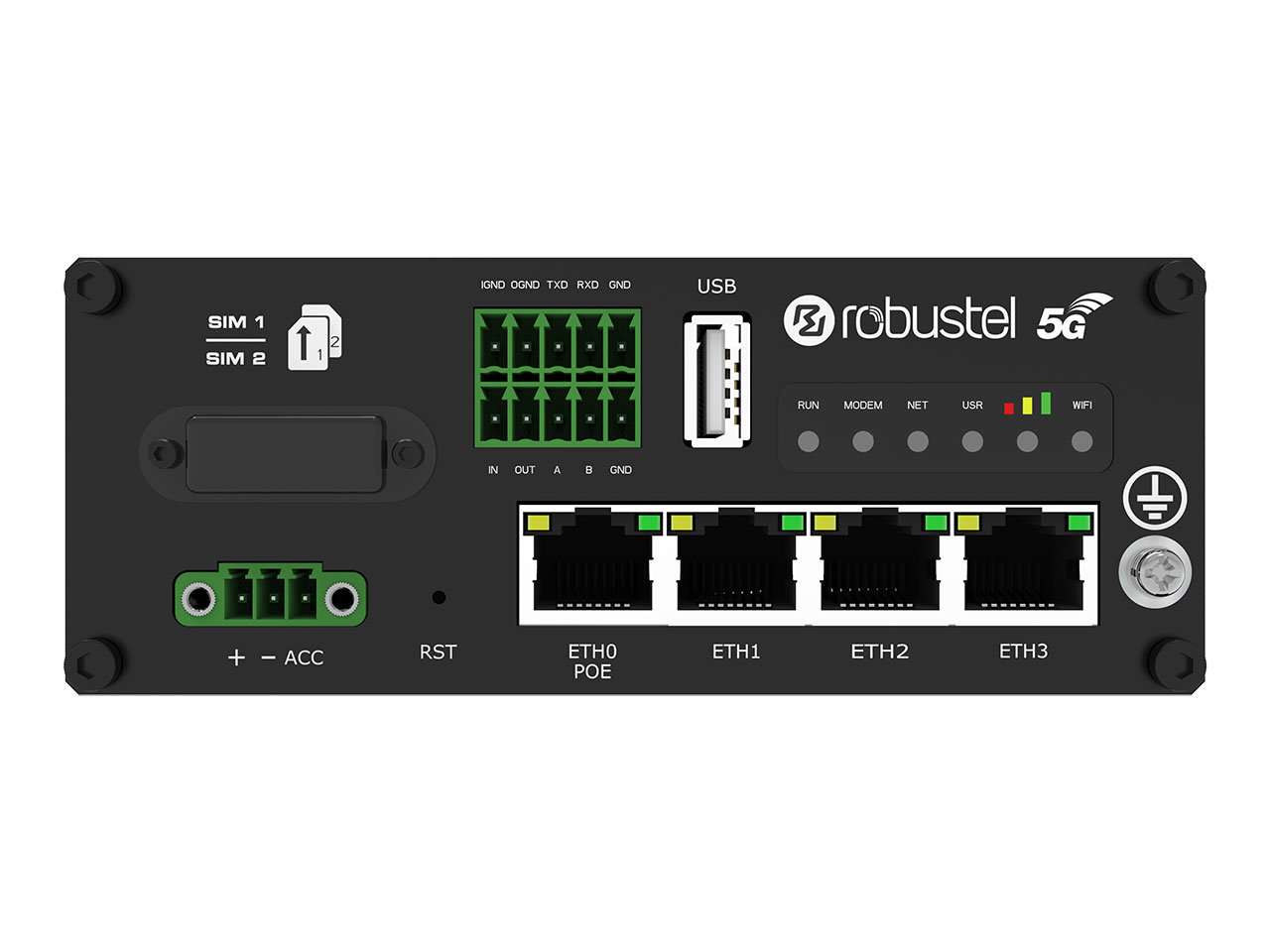

  • Ethernet Interface: 4x GbE LAN by default or 1x WAN and 3x LAN, optional PoE-PD IEEE 802.3at support at ETH0

  • 1x DI & 1x DO - optically isolated digital IOs

  • WiFi Interface: IEEE 802.11a/b/g/n/ac, 2x2 MIMO,
    supports Access Point and Wireless Client Mode

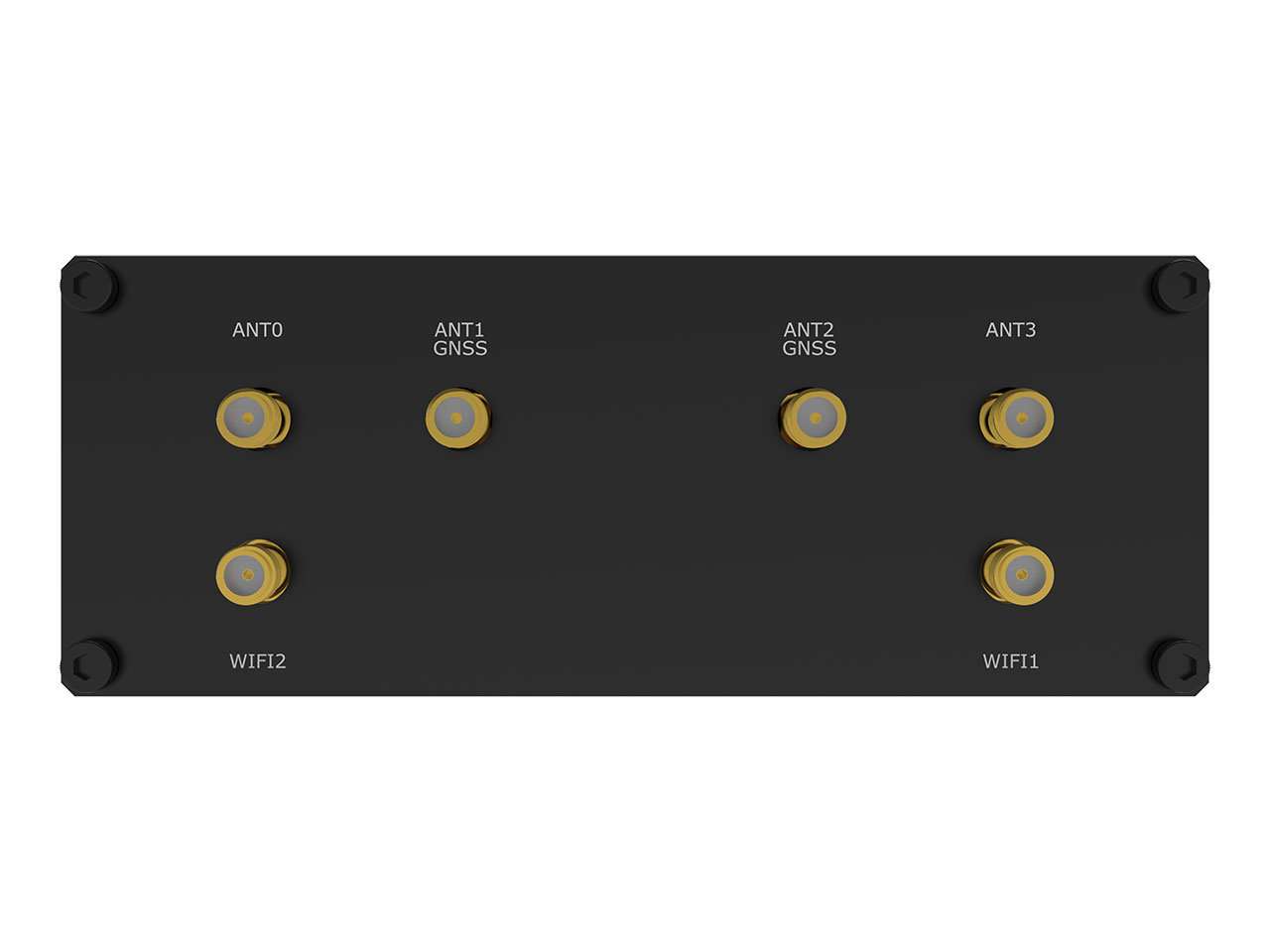

  • Antennas: 2x WiFi; 4x 5G Cellular thereof 2x GNSS - multiplexing Cellular antenna interfaces (GPS/GLONASS/BeiDou/Galileo)

  • Dual-band WiFi: 2.4GHz up to 300Mbps and 5GHz up to 867Mbps

  • Dual SIM function

  • Auto reboot via SMS/Timing

  • GNSS technology: GPS/GLONASS/BeiDou/Galileo

  • Serial Interface: 1x RS232, 1x RS485, baud rate up to 115200bps

  • Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU to Modbus TCP

  • Multiple VPN options available, including DMVPN, IPSEC, OpenVPN, GRE Protokolle

  • Security: WPA, WPA2, WEP

  • Encryption: AES, TKIP, WEP64

  • Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

  • LED indicators: 1x RUN, 1x Modem, 1x USR, 1x RSSI, 1x NET, 1x WiFi

  • Expansion: 1x USB2.0 Host; 5V/500mA

  • Operating Temperature -25 ~ +70 °C

  • IP30 protection, aluminum housing

  • Desktop, wall mounting and DIN rail mounting

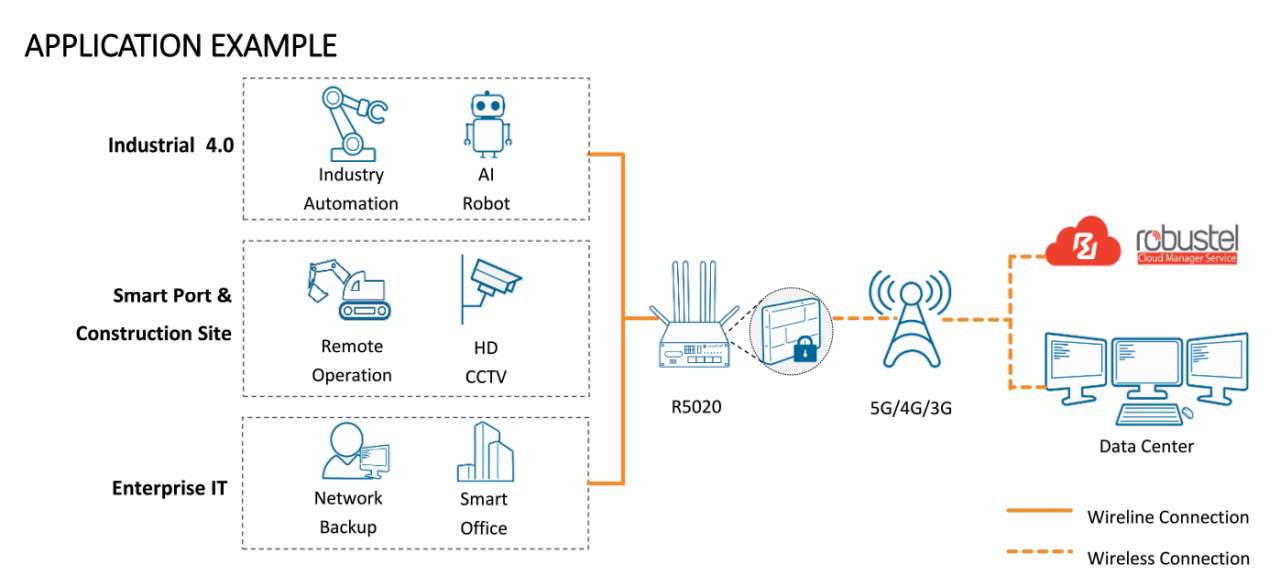

  • Retail: POS, Digital Signage

  • Industry 4.0: IoT, Remote Monitoring, Automation, AI, Robotik, AR

  • Smart City: HD CCTV, Traffic Control, Lighting Management, Disaster Monitoring, Independent Living Management

  • Enterprise IT: Network Backup, Smart Office

  • Healthcare: Telemedicine Diagnosis, AR and AI consultations

  • Other Industries: Agriculture, Energy, Oil, Gas, Mining
