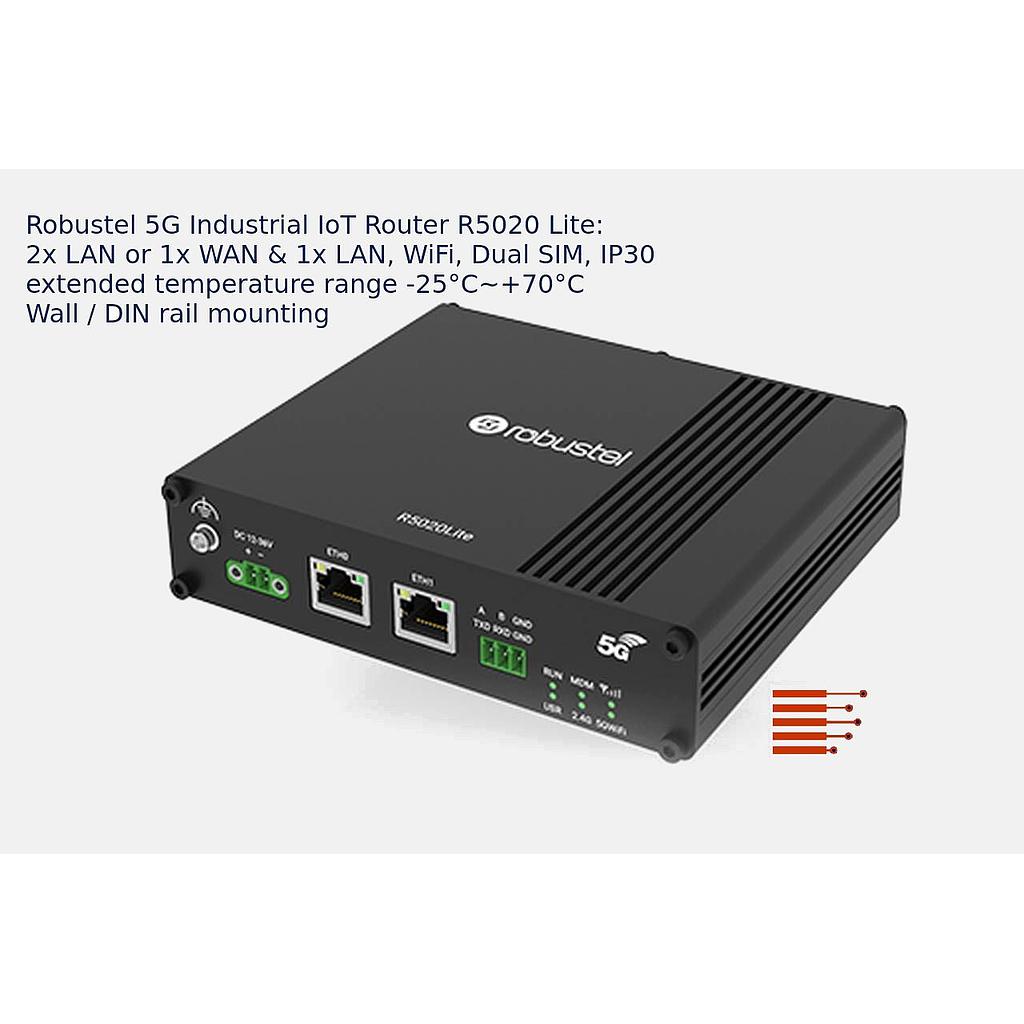

5G Industrial IoT Router R5020Lite

Get Quote

The Robustel R5020 Lite 5G Industrial Router for global 5G/4G cellular connections (Dual SIM) supports 2x Gb Ethernet or 1x LAN and 1x WAN, WiFi and 5G/4G internet with auto-failover and is compatible with 3GPP Release 16. This IoT Router enables Linux based VPN Tunnel: IPsec, OpenVPN, GRE, has IP30 protection and works at extended temperature range -25°C ~ +70°C on critical IoT applications. Mounting takes place on the desktop, on the wall or DIN rail.


 Lead time 2-3 days when available

                Robustel High Speed Smart 5G Router R5020 Lite

                global 5G/4G, 2x LAN, Dual SIM, 6x Antennas, rugged

                The R5020 Lite Router is the perfect tool to get greater bandwidth from cellular networks for any application but one of its main sweet-spots is for use in Enterprise / SD-WAN applications as a "5G managed modem".

                Existing site routers can use the R5020 Lite as a layer 2 device to add a fast cellular WAN acting as a backup to existing fixed line broadband connections.

                Features



                • Ethernet Interface: 2x GbE LAN by default or 1x WAN and 1x LAN

                • WiFi Interface: IEEE 802.11a/b/g/n/ac, 2x2 MIMO, supports Access Point and Wireless Client mode

                • Antennas: 2x WiFi; 4x 5G Cellular antennas

                • Dual-band WiFi: 2.4GHz up to 300Mbps and 5.8GHz up to 867Mbps

                • Dual SIM function

                • Auto reboot via SMS/Timing

                • Serial Interface: 1x RS232 or 1x RS485, baud rate up to 115200bps

                • Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU to Modbus TCP

                • Multiple VPN options available, including DMVPN, IPSEC, OpenVPN, GRE protocols

                • Security: WPA, WPA2, WEP, WPA3

                • Encryption: AES, TKIP, WEP64

                • Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

                • LED indicators: 1x RUN, 1x Modem, 1x USR, 1x RSSI, 1x WiFi 2.4G，1x WiFi 5G

                • Operating Temperature -25 ~ +70 °C,
                  storage -40°C ~ +85°C

                • Input voltage 12 ~ 36 VDC

                • IP30 protection, aluminum housing, 475 g

                • Dimension 136 x 115 x 32 mm

                • Desktop, wall mounting and DIN rail mounting

                Applications


                • Industry 4.0: IoT, Automation, Autonomous Robots

                • Smart City: CCTV, Real-time Management, Remote-controlled Vehicles

                • Enterprise IT:  Enterprise / SD-WAN applications as a 5G managed modem, Network Backup, Smart Office
