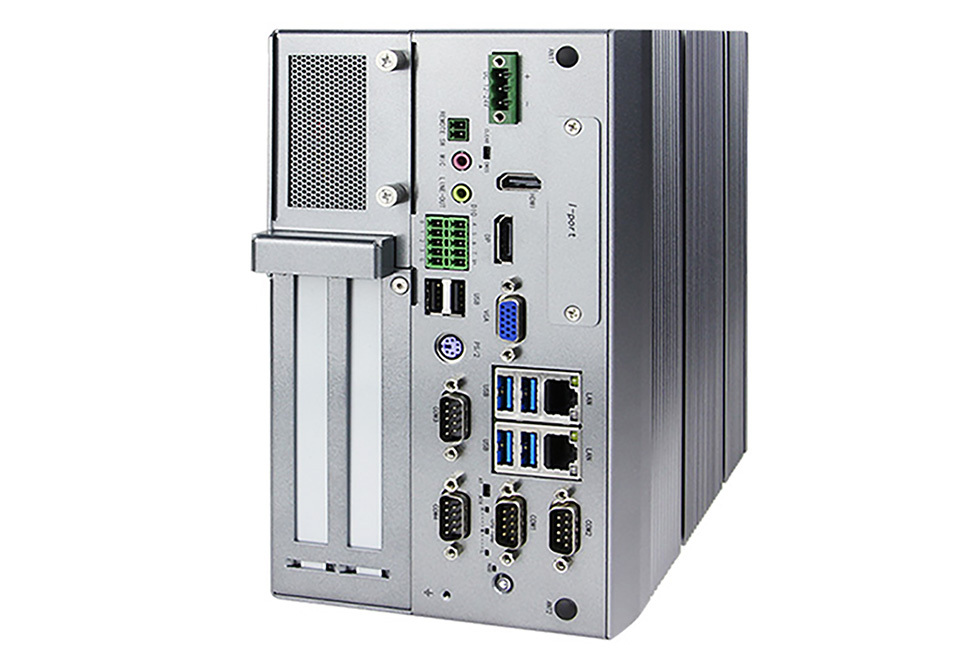

Industrial Computer KMDA-3920


Industrial computer with Intel® Core™ i3/i5/i7 CPU (Kaby Lake-S) with fanless cooling, 2x DDR4 2133/2400 MHz SODIMM-slots, DP, HDMI, VGA, 2x LAN, 4x USB3.0, 3x USB2.0, 4x COM, 8bit Digital I/O, PCIe x16 and PCIe x4 expansion slots with fan cooling, 1x miniPCIe (PCIe & USB), 1x M.2 2242 Key B, 1x mSATA, 2x 2,5" SATA with Raid 0,1 support, Intel vPro and TPM2.0, 12-24V DC Wide Power Input.



 Lead time 2-3 days when available

Rugged industrial Computer with Intel® Kabylake-S CPU

high performance, reliable in harsh environments, expandable

The Embedded Box PC KMDA-3920 is a high performance industrial Computer.
It is powered by Intel® Kabylake-S CPU and has 2x DDR4 2133/2400 MHz SODIMM slots for up to 32GB RAM. Up to  three unindependent displays can be driven: via DP1.2, HDMI1.4b and VGA.
The system provides multiple interfaces and expansion slots: 2x GbE LAN, 4x USB3.0, 1x miniPCIe supports 4G and WiFi/Bluetooth, 2x 2.5" SATA HDD/SSD, 1x mSATA, 1x M.2 used for storage, a DC 12~24V wide power input and a wide operating temperature range from -20°C up to +65°C.
The Box PC has an special I-port for use of easy to disassemble and install function modules or for use as HDD/SSD drive bay.
This System works with Linux or Windows.

Features


  • Intel® Kaby Lake-S i3/i5/i7 CPU
    with fanless cooling

  • 2x DDR4 2133/2400 MHz SODIMM,
    up to 32GB

  • 1x DP, 1x HDMI, 1x VGA

  • 2x LAN, 4x USB3.0, 3x USB2.0,
    4x COM, 8bit Digital I/O

  • PCIe x16 and PCIe x4 or 2x PCI expansion slots
    with fan cooling

  • 1x miniPCIe (PCIe & USB),
    1x M.2 2242 Key B

  • 1x mSATA, 2x 2.5" SATA
    with Raid 0,1 support

  • Intel® vPro and TPM2.0

  • 12~24V DC Wide Power Input

Applications


  • AI

  • Video and environmental monitoring

  • Industrial Automation

  • Machinevision

  • Industry 4.0 solutions
