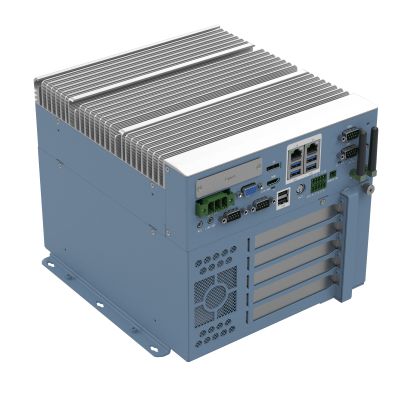

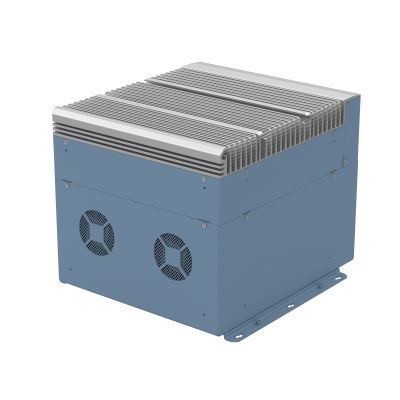

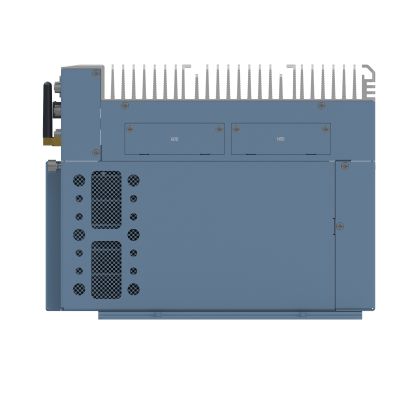

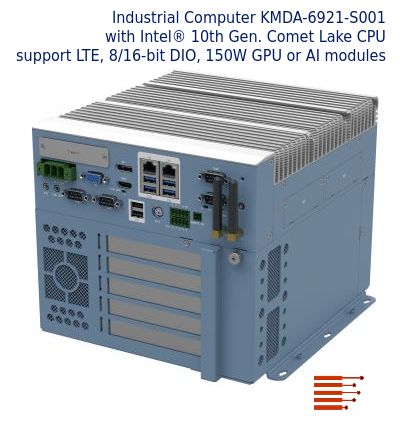

Industrial Computer KMDA-6921-S001


Industrial Computer KMDA-6921-S001 with Intel® 10th Gen. Comet Lake LGA1200 CPU: Core™ i3/i5/i7/i9, Pentium®, Celeron® CPU, 2x LAN, 6x USB, 4x COM, 1x DP, 1x HDMI, 1x VGA, 8-bit and 16-bit non-iso. DIO, 2x SATA, 1x mSATA, 2x PCIe, 2x PCI, 1x miniPCIe with SIM slot support 4G modul, support 150W GPU or AI modules, I-port, 9~36V DC



 Lead time 2-3 days when available

Embedded Box PC for continuous operation with 2x LAN, 4x COM, 6x USB

rugged, support LTE, 8/16-bit DIO, 150W GPU or AI modules

Features


  • Intel® 10th Gen Comet Lake LGA1200 CPU, passive cooling

  • Intel® H420E PCH

  • 2x DDR4 2933MHz SO-DIMM, up to 64GB

  • 1x DP, 1x HDMI, 1x VGA , supporting two independent displays

  • 2x LAN, 4x USB3.2, 8/16-bit DIO, 1x Mic, 1x Line out, 1x PS/2

  • 2x RS232/422/485, 2x RS232

  • 2x USB2.0, 1x built-in USB2.0 Type A and 1x USB2.0 wafer

  • I-port optional support 16bit DIO, USB 2.0 LPT or miniPCIe and other modules

  • 1x miniPCIe with SIM slot, supporting 4G LTE modul

  • 1x PCIe x16, 1x PCIe x4 (x2 signal), 2x PCI Slots

  • 2x 2.5" SATA bay and 1x mSATA

  • Wide power input DC 9-36V, with short circuit, over voltage and over current protection

  • Dimension (LxWxH):230x273x204mm

  • Operating temperature -20~60℃, SSD, air flow

  • RoHS-, FCC- aIndustry 4.0: IoT, Automation, AI, Robotics, AI edge computingnd CE certified

  • OS Support: Windows 11, Windows 10 IoT Enterprise, Windows Server 2019, Linux: SUSE, Ubuntu, Red Hat Enterprise; Wind River, VxWorks 7, Yocto Project

Applications


  • Industry 4.0: IoT, Automation, AI, Robotics, AI edge computing

  • Transportation: Highway tolling

  • Smart City: Public safety, Environmental monitoring

  • Other Industries: Agriculture, Energy, Construction sites, Smart Ports
